Laser Precision: How Paragon Medical Masters Swiss and Wire Ablation Technologies
Medical device manufacturing continues to push toward smaller, more complex components. Engineers now design parts with micro-scale features, tight tolerances, and intricate geometries that demand advanced manufacturing solutions.
Traditional machining alone cannot meet these demands.
Today’s manufacturers rely on precision laser machining and advanced CNC systems to create components that meet strict specifications. Laser technology enables fine feature creation, while Swiss machining delivers consistent accuracy for complex geometries.
Paragon Medical brings these capabilities together by integrating laser ablation, wire ablation, and Swiss machining into a unified process. This combination of laser precision and advanced machining enables manufacturers to efficiently produce highly complex components with exceptional speed, accuracy, and repeatability without compromising quality.
Understanding Laser Ablation and Swiss Machining
What Is Laser Ablation?
Laser ablation removes material using highly focused laser energy. This process allows manufacturers to control depth, feature size, and material removal with extreme accuracy.
In wire applications, laser ablation removes coatings or insulation from fine wires and exposes conductive materials with precision. It can also create intricate patterns and controlled features on micro-scale components.
Key benefits include:
- High repeatability across production runs
- Minimal mechanical stress on materials
- Ability to create extremely small and detailed features
- Reduced need for secondary finishing
Precision laser machining allows engineers to achieve designs that traditional tools cannot produce.
What Is Swiss Machining?
Swiss machining is a precision CNC turning process that utilizes a sliding headstock and guide bushing to provide continuous support of the bar stock at the point of cut. This configuration minimizes deflection, enabling high stability during machining of small, high-aspect-ratio components.
It is particularly effective for producing:
- Tight-tolerance, high-precision turned parts
- Long, slender geometries with minimal runout
- Micro-diameter components with complex features
By maintaining rigid workpiece support and controlled tool engagement, Swiss turning delivers superior dimensional accuracy, surface finish, and process repeatability across high-volume production runs.
Combining The Two Into An Integrated System
Traditional manufacturing often requires separate machines for machining and laser processing. Each step introduces additional handling, alignment challenges, and potential variability.
Integrated systems eliminate these issues.
By combining Swiss machining with precision laser machining, manufacturers can complete multiple operations in a single setup. This reduces production time and enables more complex features.
Paragon’s Laser Swiss Technology: Integrating Two Worlds
A Fully Integrated Manufacturing Platform

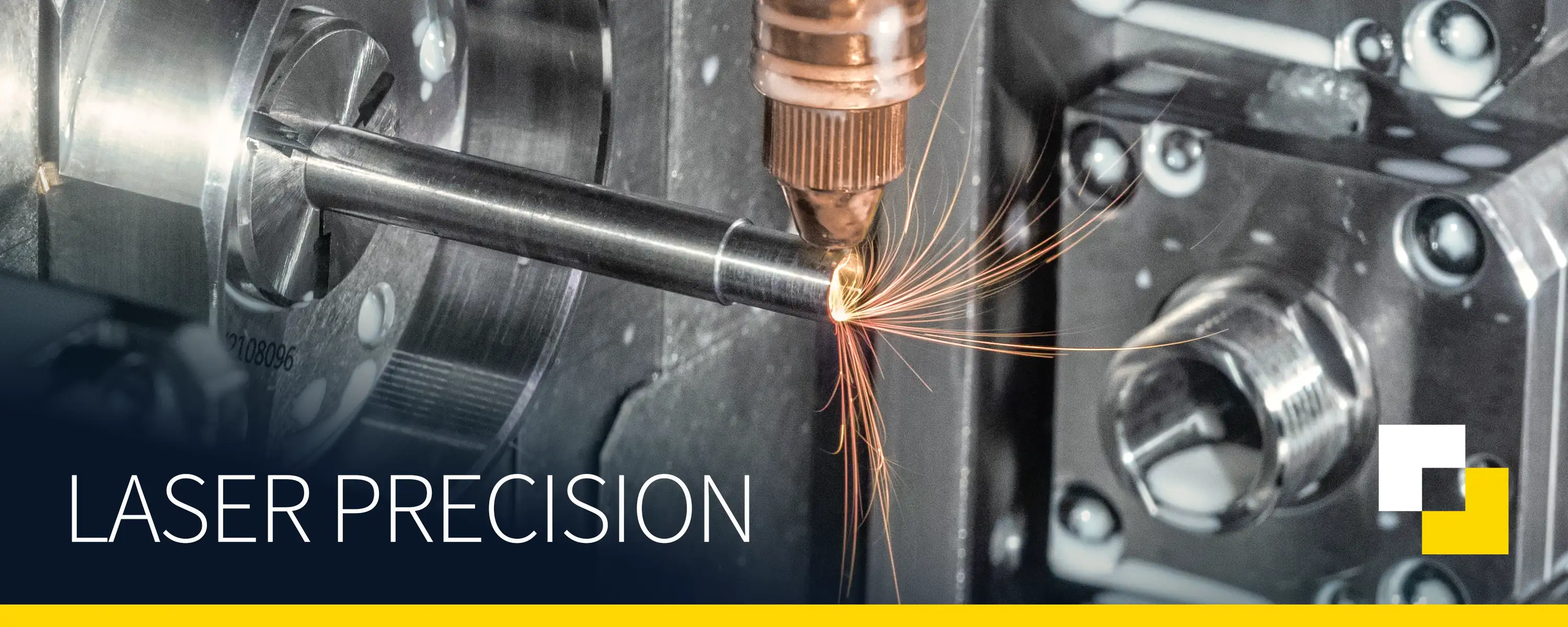

Paragon’s Laser Swiss system combines CNC Swiss machining with a high-precision fiber laser in one platform. This integration allows both machining and laser processing without removing the part from the machine.
The system supports:
- Maximum machining diameter up to 20 mm
- Fiber laser power up to 300 W
- Laser cutting speeds up to 500 mm per second
- Up to 36 tools plus integrated laser capability
This configuration allows multiple operations within a single cycle, including:
- Laser cutting
- Turning
- Drilling
- Threading
- OD and ID machining
- Laser welding
Precision Capabilities Enabled by Laser Swiss Machining

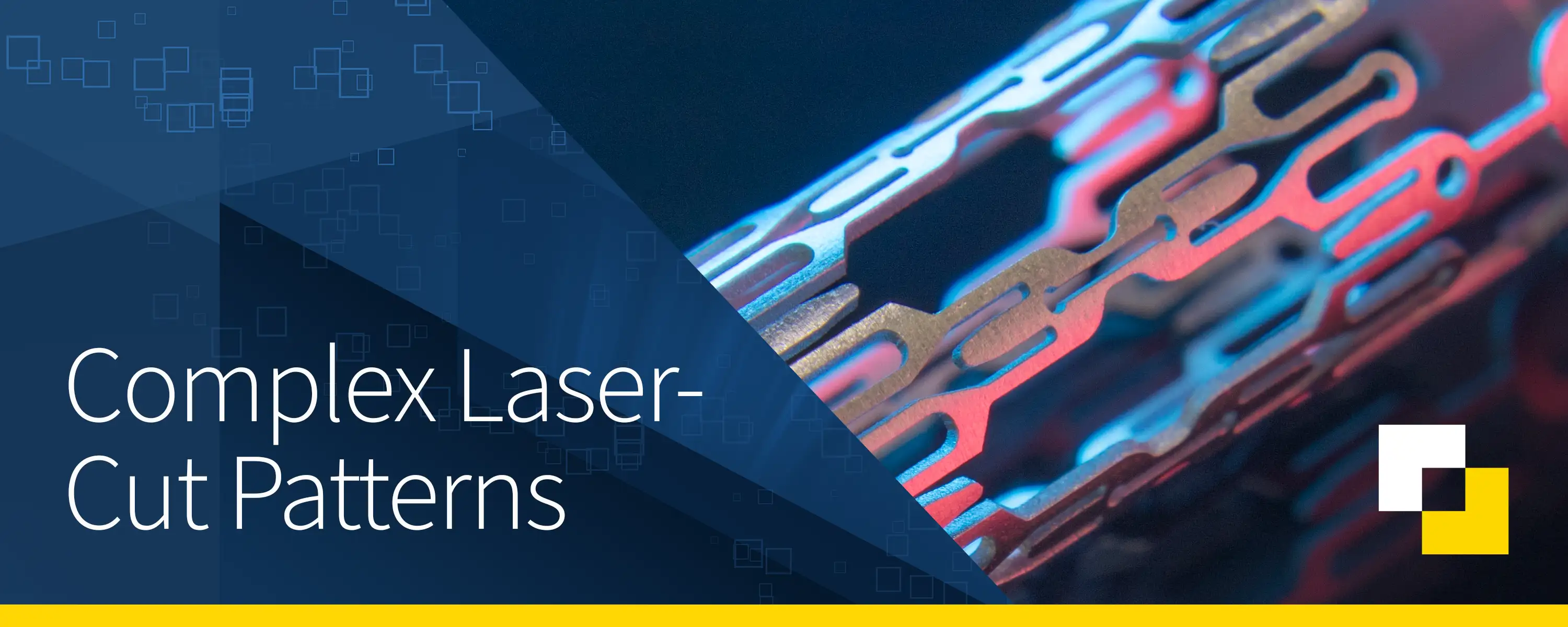

Precision laser machining allows the creation of intricate patterns in thin-wall tubing and fine components. Engineers can design:
- Flex patterns
- Micro-scale features
- Detailed cut structures
These capabilities support advanced component designs that require both flexibility and strength.
Multi-Axis Machining Flexibility
Six-axis Swiss machining combined with laser cutting enables full control over both internal and external features.
Capabilities include:
- ID expansion
- OD reduction
- Cross-hole drilling
- Precision pattern cutting
This flexibility allows engineers to create complex geometries within a single process.
Simultaneous Operations with Dual Spindles
The system synchronizes the main and back spindles to perform operations on multiple ends of a component at the same time.
This approach delivers:
- Increased process efficiency
- Reduced cycle times
- Enhanced dimensional consistency
Engineering Advantages of Integrated Laser and Swiss Manufacturing
Reduced Setups and Handling
Integrated systems eliminate the need to transfer parts between machines. This reduces alignment risks and improves consistency across production runs.
Faster Production Cycles
Manufacturers complete multiple operations in one cycle. Some processes that once required multiple setups now finish in seconds.
Reduced Secondary Processes
Precision laser machining produces clean cuts with minimal burr formation. This reduces the need for deburring and finishing operations.
Optimized Manufacturing Footprint
A single multi-function system replaces several machines on the shop floor. This improves efficiency and simplifies production workflows.
Applications Across Medical Device Manufacturing
Paragon’s laser-enabled Swiss machining supports a wide range of component manufacturing needs, including:
- Surgical and medical instruments
- Structural heart device components
- Vascular technologies such as catheter tubing
- Orthopedic device components and tools
Laser wire ablation also plays a critical role in fine wire components. It removes insulation, creates patterns, and prepares conductors for integration into assemblies.

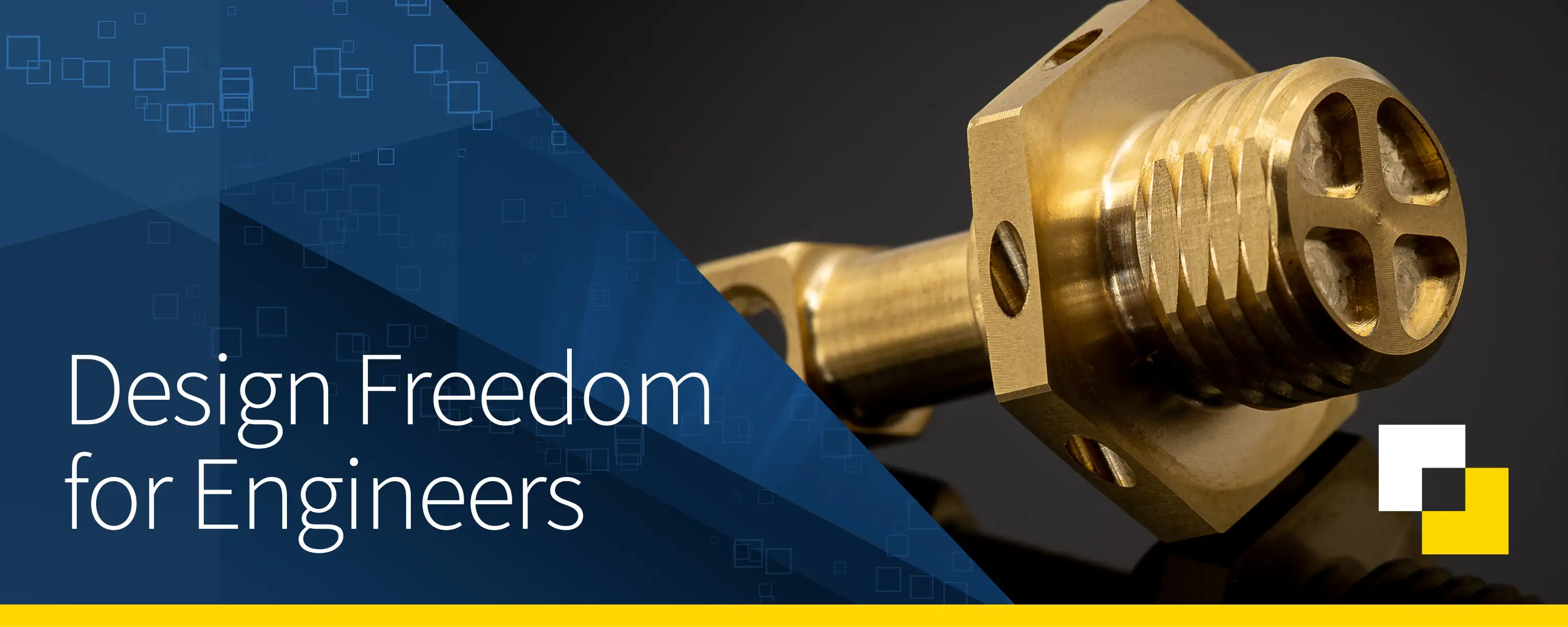

Expanding What Designers Can Create
Precision laser machining removes many of the limitations of traditional manufacturing. Engineers can now design components with complex geometries and fine features.
Supporting Complex Micro-Component Designs
Advanced capabilities support:
- Micro-cut lattice patterns
- Thin-wall tubing modifications
- Hybrid machined and laser-cut geometries
Accelerating Development Cycles
Proven material processing parameters allow faster development and validation. Engineers can move from concept to production with greater confidence.
Paragon Medical’s Broader Precision Manufacturing Expertise
Paragon Medical combines multiple advanced capabilities to support complex manufacturing needs:
- Precision laser machining and laser processing
- Advanced engineering and design support
- Scalable manufacturing solutions
With decades of experience in the medical device industry, Paragon delivers reliable solutions for high-precision components.
The Future of Laser-Enabled Micro-Manufacturing
Manufacturers continue to demand smaller, more complex components. This trend drives the adoption of hybrid manufacturing platforms that combine multiple technologies.
Precision laser machining and Swiss systems will play a central role in this evolution. These integrated solutions allow manufacturers to meet tighter tolerances and more advanced design requirements.
Precision Without Compromise
Precision laser machining and Swiss machining together create a powerful manufacturing solution. This integration delivers:
- Greater design flexibility
- Reduced production complexity
- Faster and more efficient manufacturing
- Consistent, scalable precision
Paragon Medical continues to lead in advanced manufacturing by combining laser technology, engineering expertise, and integrated systems to support complex component production.
Advance Your Precision Manufacturing Capabilities
Ready to take your component designs to the next level? Paragon Medical combines precision laser machining, Swiss machining, and advanced wire ablation technologies to help you produce complex components with accuracy and efficiency. Our integrated approach reduces production time, improves consistency, and supports even the most demanding design requirements. Connect with our team to explore how our capabilities can support your next project.
Frequently Asked Questions
What is laser Swiss machining?
Laser Swiss machining combines Swiss-style CNC machining with precision laser cutting in a single system. This allows manufacturers to perform multiple operations without moving the part.
What are the benefits of combining laser cutting and Swiss machining?
This combination reduces setups, improves efficiency, and enables more complex component designs while maintaining tight tolerances.
What materials can be processed using laser Swiss machining?
Manufacturers commonly use stainless steel, nitinol, titanium, and specialty alloys for precision components.
What types of features can laser ablation create in precision components?
Laser ablation can create micro-holes, intricate patterns, thin-wall structures, and detailed geometries that traditional tools cannot achieve.
Why is laser technology important in modern medical device manufacturing?
Laser technology supports the production of smaller, more complex components with high precision, repeatability, and reduced need for secondary processes.
